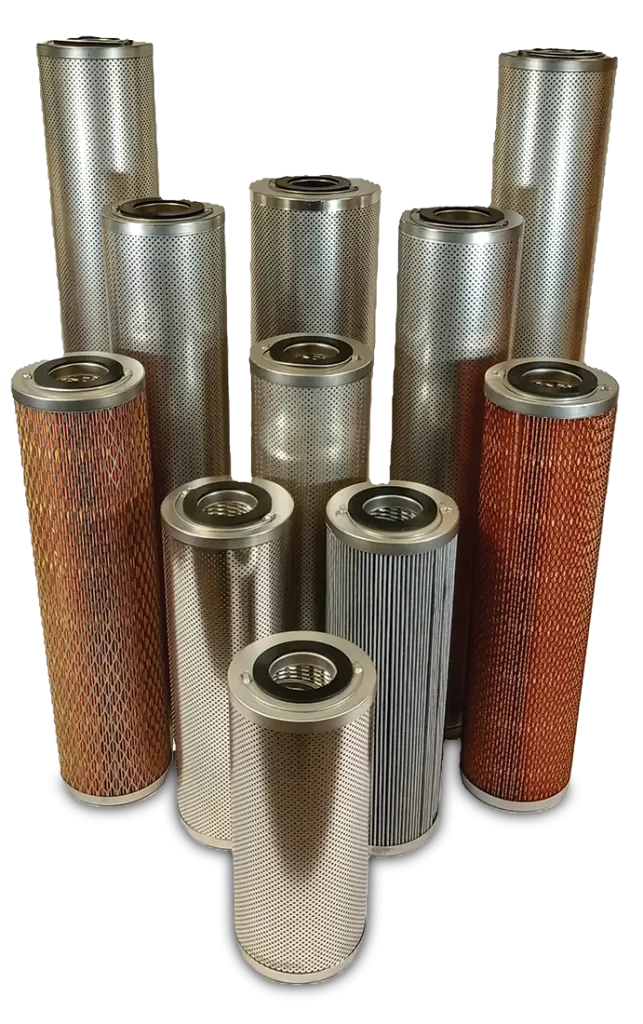

Superior Efficiency, Long Life Filter Cartridges for Industrial Fluid Filters

Dynamic Filtration-USA made industrial fluid cartridges are the ideal filter for a wide array of industrial filter requirements. They are built using industrial grade materials and superior types of cellulose media. These filters are designed to remove particulates, provide a long service life with high flow rates at a low pressure drop. We are committed to short lead times and cost savings over expensive OEM filters.

Quality Replacements For These Brand Names and Many More:

  • Baldwin
  • Donaldson
  • Ebbco
  • Fleetlife
  • Fluitek
  • Hilco (Hillard)
  • Kaydon Keene
  • Parker
  • Peerless
  • Peerless
  • PTI
  • Purolator
  • Refilco
  • Royal
  • Schroeder
  • Waukesha

Current sizes and types listed below. Dynamic is adding new sizes on a regular basis. Please check in with us on any filter cartridge sizes not listed below and for a local distributor.

Sizes and Types

Features and Benefits

  • Large Pleated Surface Area - Allows high flow rate with low initial pressure drop.
  • Pleat Locks and Corrugated Media – Prevents pleat pinching and lengthens life.
  • Superior Quality Resin Impregnated Cellulose Media - designed for the most efficient removal of particulates from industrial liquids.
  • High Pressure Ratings – to withstand pressure surges up to 150 PSI.
  • Wide Size Range – fits most of the popular industrial vessel sizes.

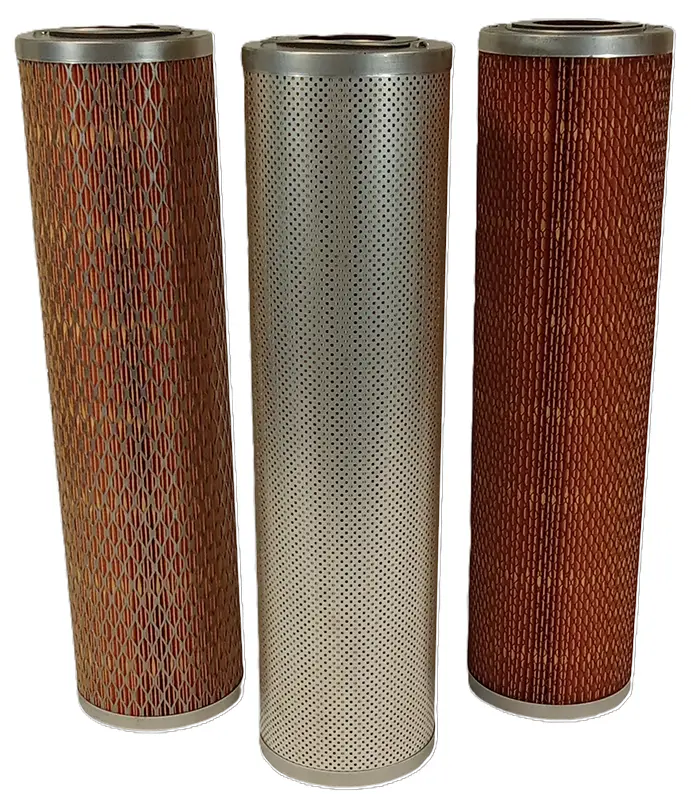

  • Industrial Grade Outer Protective Sleeves – ETP steel jacket protect media from damage.

Specifications

  • Phenolic, resin impregnated cellulose
  • Micron ratings from 0.35 to 20 nominal. Others available upon request
  • Operating temperatures up to 225°
  • Heavy gauge metal caps
  • Cores: High strength spiral ETP (Electro-tin-plated) steel
  • Buna-N gaskets are standard end seals, others upon request
  • Polyurethane adhesive for stronger cap/paper bond
  • Outside to Inside Flow

Applications

  • Process Fluids
  • Coolants
  • Fuels, Distillate fuel, Diesel, Jet fuels, Fuel oils
  • Water Soluble Coolants
  • Hydraulic Oils, Lubrication Oils, Synthetic Oils, Quench Oils, Refrigerate oils
  • Cutting and Machining Fluids
  • Solvents
