Mitsubishi EDM Machine Models:

  • K SERIES, M35K, M55K

PLASTIC
Part #
3-5 Micron		 ID OD Height
DF1212-5QCL-E 1 1/4"
(32 MM)		 12"
(206 MM)		 11 1/2"
(343 MM)

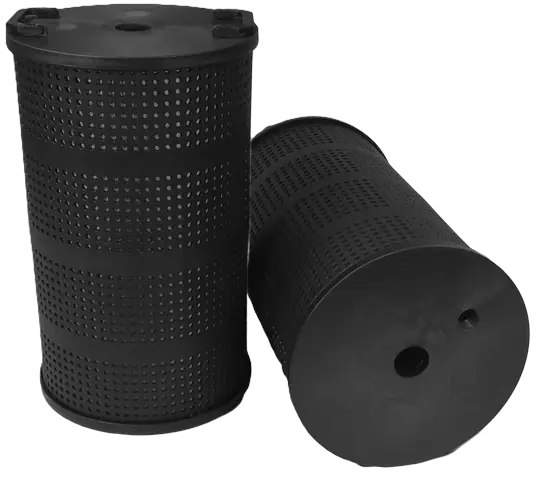

Mitsubishi Sinker Machine Filters

1220-B5O5

Mitsubishi Sinker Filters

DF1014-BH5

  • DK SERIES

  • DM SERIES

  • DP-431

  • FS V SERIES

  • FV SERIES

  • J SERIES

  • JV SERIES

  • M SERIES

  • MJV SERIES

  • M 25 SERIES

  • M 35J

  • V SERIES

  • V 55F

METAL LONGER SERVICE LIFE
Part #
5 Micron		 Part #
10 Micron		 ID OD Height
DF1014-BH5 DF1014-BH10 1 1/4"
(32 MM)		 10 1/4"
(260 MM)		 13 1/2"
(343 MM)
No coupler included
  • EA SERIES
  • EX SERIES
  • VX SERIES
  • XPX
    METAL
    Part #
    1 Micron    		 Part #
    3-5 Micron    		 Part #
    10 Micron    		 ID OD Height
    DF1214-1QCL DF1214-5QCL DF1214-10QCL 1 3/4"
    (44.5 MM)     		12"
    (305 MM)    		 13 1/2"
    (343 MM)
    IMCOUP-ML offset bottom coupler in carton
    coupler in carton
    Mitsubishi Sinker Filters

    DF1214-5QCL

    • EAV-8V, 12V, 28V

    • EA-D SERIES

    • EA-P

    • EA-12A, 12E, 12S

      MA SERIES

    • SG28

    • SV8P, SV12P

    • VA SERIES

    • VH SERIES

    • YM9

    METAL
    Part #
    1 Micron    		 Part #
    3-5 Micron    		 Part #
    10 Micron    		 ID OD Height
    DF1212-1QCL DF1212-5QCL DF1212-10QCL 1 3/4"
    (44.5 MM)     		12"
    (305 MM)    		 13 1/2"
    (343 MM)
    IMCOUP-ML offset top coupler in carton
    coupler in carton
    Mitsubishi Sinker Machine Filters

    DF1212-5QCL

    Mitsubishi Sinker Machine Filters

    DF1212-5QCL-E

    • EAV-YM9
    • EA 8 SERIES
      • (ONLY ACCEPTS CENTER COUPLER)
      METAL
      Part #
      3-5 Micron      		 OD Height
      DF1212-5QCL-E 12”
      (305 MM)      		 11 1/2”
      (292 MM)
      IMCOUP-ML coupler for top in carton
      coupler in carton
