Chmer/AMS Tech Hole Drilling Machine Filters

  • ZNC SERIES

  • 430ZD

  • CNC SERIES

METAL
Part #
3-5 Micron		 Part #
10 Micron		 Part #
20 Micron		 ID OD Height

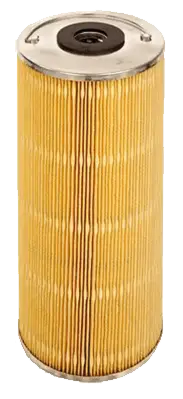

614-125-BH5 614-125-BH10 614-125-BH20 1 1/4"
(32 MM)		 6"
(152 MM)		 14"
(356 MM)
614-125-BHW5 614-125-BHW10 614-125-BHW20 1 1/4"
(32 MM)		 6"
(152 MM)		 14"
(356 MM)
IMCOUP-MS coupler for bottom in carton
coupler in carton
Chmer/Amstech Hole Drilling Filters

1312-5QC

  • EDM MAX SD*

  • H64C+

PLASTIC
Part #
3-5 Micron		 Part #
10 Micron		 OD Height

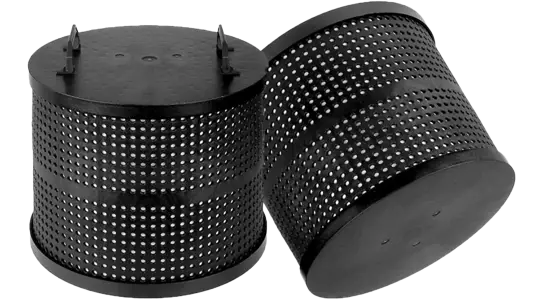

1312-5QCM 1312-10QCM 13 1/4”
(337MM)		 12”
(305 MM)
IMCOUP-MS coupler for bottom in carton
coupler in carton

* Depending on the connection, some models may use the DF1312-5QC-C

+ H64C uses the 1220-5QCE filter.
