Sodick Wire Machine Filters
Filters are designed in metal and plastic baskets. These filters are compatible with the following by Sodick:
DF1312-BS

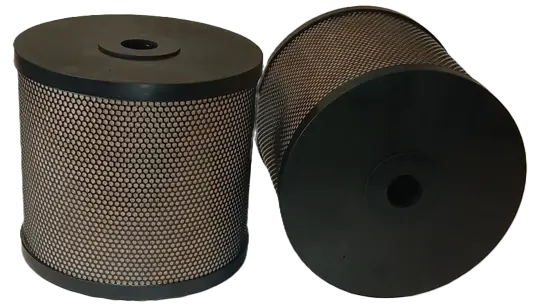

DF1312-B5NH
METAL LONGER SERVICE LIFE
| Part # 1 Micron |
Part # 3-5 Micron |
Part # 10 Micron |
Part # 20 Micron |
ID | OD | Height |
|---|---|---|---|---|---|---|
| DF1312-1BS | DF1312-BS | DF1312-10BS | DF1312-20BS | 1 7/8" (48 MM) |
13 1/4" (337 MM) |
12" (305 MM) |
| DF1312-1BSNH* | DF1312-BSNH* | DF1312-10BSNH* | DF1312-20BSNH* | 1 7/8" (48 MM) |
13 1/4" (337 MM) |
12" (305 MM) |
No coupler included, standpipe connection
* No handle on top of filter
1312-B5S
PLASTIC
| Part # 3-5 Micron |
Part # 10 Micron |
Part # 20 Micron |
ID | OD | Height |
|---|---|---|---|---|---|
| 1312-B5S | 1312-B10S | 1312-B20S | 1 7/8" (48 MM) |
13 1/4" (337 MM) |
12" (305 MM) |
No coupler included, standpipe connection
- A280L, LT
- A300 SERIES
- A320 SERIES
- A325, 350, 350D
- A350S, 350SS
- A350W, SSW
- A500, 500W
- A500, 500P, 500WP
- A530, 530D
- A535
- A600, 600P, 600W
- A600WP
- A750, 750W
- A1000W
- AD325L
- AG SERIES
- AL/ALC SERIES
- ALG 400G, 600G, 600GH
- ALN 400G, 800G, 800GH
- AL 400P, 600P, 800P
- ALC 400G, 600G
- ALP SERIES
- AP200
- AP250L, 450L
- AP500 SERIES
- AP600 SERIES
- AQ200L, 300L
- AQ325, 325L
- AQ327L
- AQ360, AQ360L
- AQ400L
- AQ535, 535L, 537L
- AQ550L, 560L
- AQ600L, LH
- AQ750L, LH
- AQ750-CH
- AQ800, AQ800L, LF
- AQ900L
- AQ1200L, LH
- AQ1500L
- AS300
- BF250, 275
- BF280, 280L, 320L
- HB1000W
- MK21,25
- SL400G, P, Q
- SL600G, P, Q
- SLC400G
- SLN400G
- SLN600G, Q
- VL SERIES
- VL 400Q, 600Q, 600QH
- VN SERIES
- VZ300L, 500L
- Hanaco
- Junco
PLASTIC
| Part # 3-5 Micron |
Part # 10 Micron |
Part # 20 Micron |
ID | OD | Height |
|---|---|---|---|---|---|
| 1312-B5S | 1312-B10S | 1312-B20S | 1 7/8" (48 MM) |
13 1/4" (337 MM) |
12" (305 MM) |
No coupler included, standpipe connection
1312-B5S
Sodick EDM Machine Models:
-
A280, 280L, 280LT
-
A300, A300W
-
A320, A320D
-
A325, A350
-
A350S, A350SS
-
A350W, A350SW
-
A5C
-
A5R
-
AH5
-
A6C
-
A7C
-
A10C, 15C
-
A500, 500L, 500W
-
A500P, A500Q
-
A500WP
-
A530, A530D
-
A535
-
A600, 600P
-
A600W
-
A600WP
-
A750
-
A750W
-
A1000W
-
A5300
-
AD325L
-
AGS SERIES
-
ALS SERIES
-
ALN SERIES
-
AP200, 200L
-
AP200L
-
AP300, 330
-
AP350, 450
-
AQ SERIES
-
AW330, 453
-
BF250, 275
-
BF280, 280L
-
BF320L
-
EPOC300
-
EPOC500
-
EPOC600
-
EPOC800
-
EW SERIES
-
HB1000W
-
SL SERIES
-
SLN SERIES
-
40NC
1318-B5S
PLASTIC
| Part # 3-5 Micron |
Part # 10 Micron |
ID | OD | Height |
|---|---|---|---|---|
| 1318-B5S | 1318-B10S | 1 7/8" (48 MM) |
13 1/4" (337 MM) |
12" (305 MM) |
No coupler included, standpipe connection
Sodick EDM Machine Models:
- A4, A5, A5C, A5R
- A10C, A10L
- A15C, A15L
- A280, 280L
- A300/A300W
- A320, 325
- A320D
- A350, 350S
- A350SSW
- A350W
- A500, 500W
- A500WP
- A530, 530D
- A5300
- A6
- A600/A600W
- A600WP
- A6C
- A7, A7C
- A700
- A750/A750W
- A1100S
- AA SERIES
- AH4
- AH5, AH6, AH7
- AP150
- AP200, 200L
- AP300
- AP330 (water)
- AP350
-
AP450 (water)
-
AP450L (water)
-
AP550
-
AQ325L
-
327AQ400
-
600
-
AQ400, 600
-
AQ535L, 550L
-
AQ537L, AQ750L, 900L
-
ASX300P, 350L
-
AW330, 453
-
BF250, 275, 280
-
E4, E5, E6
-
E300, E500, E600
-
E800, E1100
-
EPOC5, EPOC6
-
EPOC 300
-
EPOC 500
-
EPOC 600
-
EPOC 800
-
EPOC 1000
-
EPOC1100
-
40NC
1012-BH
1012-BHW
| Part # 3-5 Micron |
Part # 10 Micron |
Part # 10 Micron |
ID | OD | Height |
|---|---|---|---|---|---|
| 1012-BH5 | 1012-BH10 | 1012-BH20 | 1 3/4" (44.5 MM) |
10 1/4" (260 MM) |
11 3/8" (289 MM) |
| 1012-BHW5 | 1012-BHW10 | 1012-BHW20 | 1 3/4" (44.5 MM) |
10 1/4" (260 MM) |
11 3/8" (289 MM) |
No coupler included, standpipe connection
