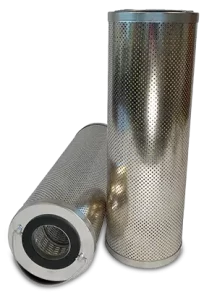

Industrial Fuller’s Earth Filters
Model Number – IF618
Nominal Micron Levels Available – 5 micron
Overview
The Industrial Fuller’s Earth Cartridge Filter from Dynamic Filtration is made from a special grade of activated clay used for decolorizing and removing surfactants from light hydrocarbon fluids such as jet fuel, kerosene, diesel and other fuel oils. The filter absorbs polar compounds, color bodies, and inorganic contaminants and neutralizes acid from hydraulic and lube oils. In quench oils, fullers earth media is used to correct viscosity.Product Description
The Dynamic filter is made using fine grades of fuller’s earth and covered with a strong corrosion resistant steel wrap. For transformer oil, the filter removes contaminants and moisture from used transformer oil and allows for recycling of the oil. For jet fuels, the fuller’s earth filter removes polar compounds to ensure it meets product specifications. And for mineral oils - color bodies, acids, and other by-products are removed.
IF618
| Part # 5 Micron |
ID | OD | Height |
|---|---|---|---|
| IF618-262-5FE | 2 5/8" (67 MM) |
6" (152 MM) |
18" (457 MM) |
Product Features
Materials of Construction:
- Filter Media - Fuller’s Earth
- Inner Core - Electroplated Steel to prevent cartridge collapse at high pressures
- End Caps - Plated Steel
- Sleeves - Electroplated steel
- Buna-N gaskets - Optimize the seal. Other gasket materials are available.
Part Number: IF618-262-5FE
Flow Direction: Outside > In
150 psi Collapse Strength: Heavy gauge steel caps
Temperature: 225°F (107° C)
Shipping Information: 4 Per Carton
Filter Replacements
- Jonnell
- ClayPur
- Velcon
- Facet
- Henek
- Bowser-Briggs
- Keene
- Filterdyne
- Gulfgate
- Parker-Racor
Applications
- Jet Fuel
- Transformer / Insulating Oil
- Hydraulic and Lubricating Oils
- Solvents
- Quench Oil
- Deisel and Kerosene
- GasolineMineral Spirits
- Industrial Oils
