Waterjet Filters
Dynamic Filtration USA-made waterjet filter cartridges are made to meet the challenges of submicron filtration required by waterjet pumps. They are built using high grade materials and 0.35 micron or 1 micron media that has superior abrasive holding capacity. These filters are designed to remove particulates and provide a long service life. We are committed to short lead times and cost savings over expensive OEM filters.
Features and Benefits
- Large Pleated Surface Area - Allows high flow rate with low initial pressure drop.
- Pleat Locks and Corrugated Media – Prevents pleat pinching and lengthens life.
- Superior Quality Cellulose Synthetic Blend Media - designed for the most efficient removal of particulates from industrial liquids.
- Operating Temperatures – suitable for temperatures up to 225°.
Specifications
- Cellulose Synthetic Blend Media
- Micron ratings from 0.35 to 5 nominal. Others available upon request
- Operating temperatures up to 225°
- Heavy duty plastic molded caps
- Cores: High strength spiral ETP (Electro-tin-plated) steel
- Buna-N gaskets are standard end seals
- Polyurethane adhesive for stronger cap/paper bond
- Outside to Inside Flow
Waterjet filters commonly used in Ebbco, Omax and Other Filtering Systems.
| Part # 0.35 Micron |
Part # 1 Micron |
ID - Top | ID - Bottom | OD | Height |
|---|---|---|---|---|---|

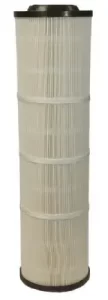

| WJ729-0.35 | WJ729-1 | 3” NPT (76 MM) |
2 5/8” NPT (67 MM) |
7 3/4” (178 MM) |
29 1/8” (740 MM) |

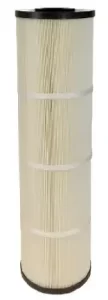

| WJ829-0.35 | WJ829-1 | 2 5/8” NPT (67 MM) |
2 5/8” NPT (67 MM) |
7 3/4” (178 MM) |
28 3/8” (721 MM) |
