Sodick Sinker Machine Filters

Our Sodick sinker machine filters are available in 5, 10, or 20 Micron. These sinker machine filters are compatible with the following by Sodick:


  • A4R

  • A10, 10C, 10R

  • A15, 15L

  • A30, 30R

  • A35, 35R

  • A50, 50R

  • A65, 65R

  • A70

  • A85, A85R

  • AD3L

  • AD30L

  • AD35L, 55L

  • AG25L

  • AG40L, 60L

  • AG75L

  • AG80L, 100L

  • AG200L

  • AG400L

  • AH7, 10

  • AH65, 85

  • AL40G, 60G, 80G

  • AM3L

  • AM35, 35L

  • AM45L, AM55L, AM65L

  • AP250, 250L

  • AP450L

  • AQ15L

  • AQ20L

  • AQ35L

  • AQ55L, 75L, 85L

  • AQ327L

  • AW330

  • AW453

  • EPOC-4

  • MM3, (NF Control)

  • MM5 (TX21 Later)

  • PGM3, 30

  • PGM 3R, 30R

  • PGM4, 4R

  • PGM 30, 35

  • PGM50, 50R

  • PGM 65, 65R

  • SD3LR

METAL
Part #
3-5 Micron		 Part #
10 Micron		 ID OD Height
DF1014-BH5 DF1014-BH10 1 1/4"
(32 MM)		 10 1/4"
(260 MM)		 13 1/2"
(343 MM)
No coupler included
Sodick Sinker Machine Filters

DF1014-BH5

  • A1
  • A2, A2C
  • A3, A3C
  • A3R
  • A4, A4C, A4R
  • AP1
  • AP150, 150W
  • AP200, 200R
  • AP3
  • AP300
  • AP330
  • AP330W (water/oil)
  • AP3R
  • AP450 (water/oil)
  • AP453
  • AP453W
  • AP654W
  • APOC4
  • APOC6
  • BM2, BM3
  • EPOC2
  • EPOC3
  • EPOC4
  • EXC100,100S
  • FP2
  • K1,2,3-CN
  • MM3 SERIES
  • MM5 SERIES
  • W330A
  • W453
  • 22NC
  • 30NC
  • 35NC
Sodick Sinker Machine Filters
Part #
3-5 Micron		 Part #
10 Micron		 Part #
20 Micron		 ID OD Height
718-125-B5*     1 1/4"
(32 MM)		 6"
(152 MM)		 18"
(457 MM)
718-125-BW5*     1 1/4"
(32 MM)		 6"
(152 MM)		 18"
(457 MM)
 718-212-BHW5 718-212-BHW10 718-212-BHW20 2 1/8"
(54 MM)		 6"
(152 MM)		 18"
(457 MM)
  718-262-BH10 718-262-BH20 2 5/8"
(67 MM)		 6"
(152 MM)		 18"
(457 MM)
718-262-BW5* 718-262-BW10* 718-262-BW20* 2 5/8"
(67 MM)		 6"
(152 MM)		 18"
(457 MM)
718-262-BHW5 718-262-BHW10 718-262-BHW20 2 5/8”
(67 MM)		 6”
(152 MM)		 18”
(457 MM)

* No handles

  • AP150, 300

  • AW330, AW453

  • EPOC3W, 3WW, 3WS

  • EPOC300

  • EPOC500, 600 , 800

  • E300, 500, 600, 800, 1100

  • G3A, 5A

  • GW3,5

  • GOW3, 4, 5

  • 1W, 2WH

  • 330W, 453W, 654W

Sodick Sinker Machine Filters

614-125-BH

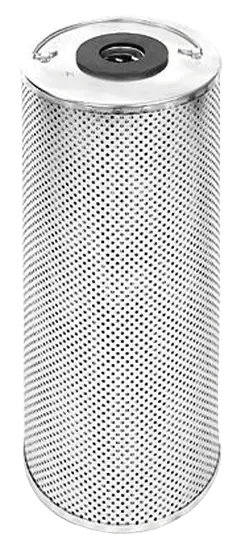

Sodick Sinker Machine Filters

614-125-BHW

Part #
3-5 Micron		 Part #
10 Micron		 Part #
20 Micron		 ID OD Height
614-125-BH5 614-125-BH10 614-125-BH20 1 1/4"
(32 MM)		 6"
(152 MM)		 14"
(356 MM)
614-125-BHW5  614-125-BHW10 614-125-BHW20  1 1/4"
(32 MM)		 6"
(152 MM)		 14"
(356 MM)
